Jupiter accelerator pedal.
Sorry it has taken so long but I have only just been given a pedal to look at.

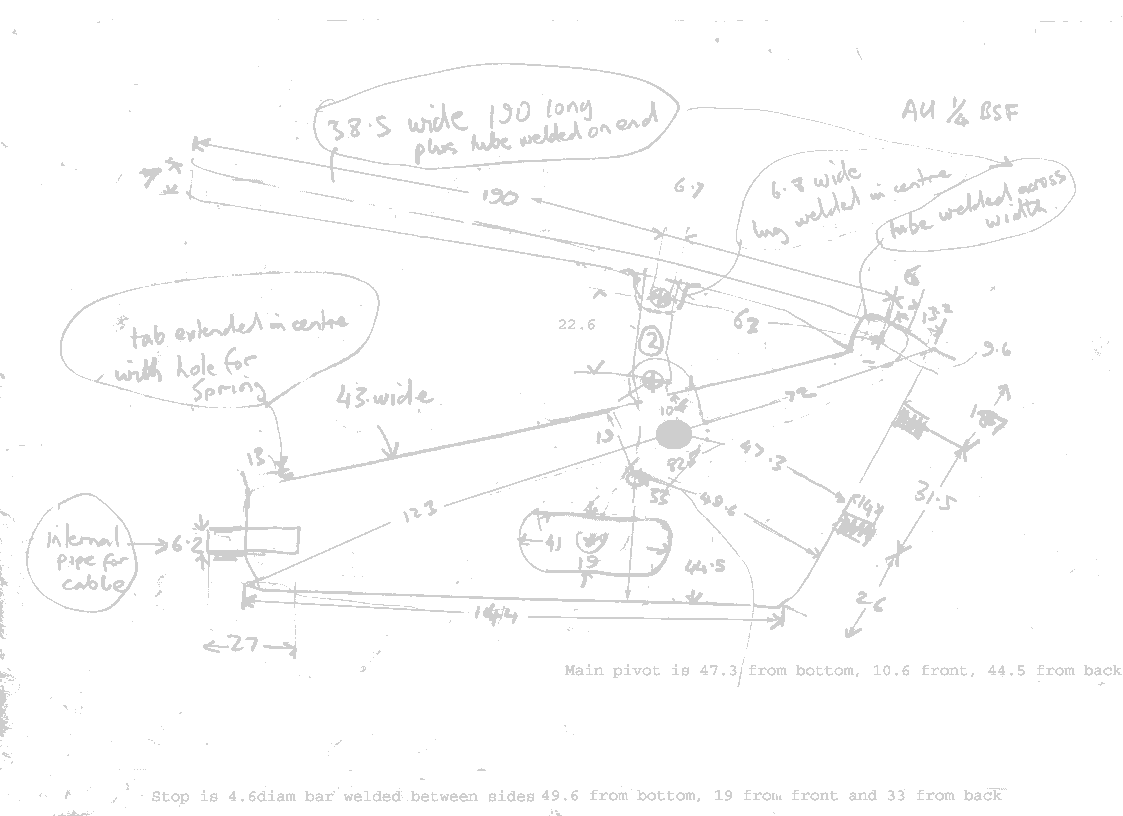

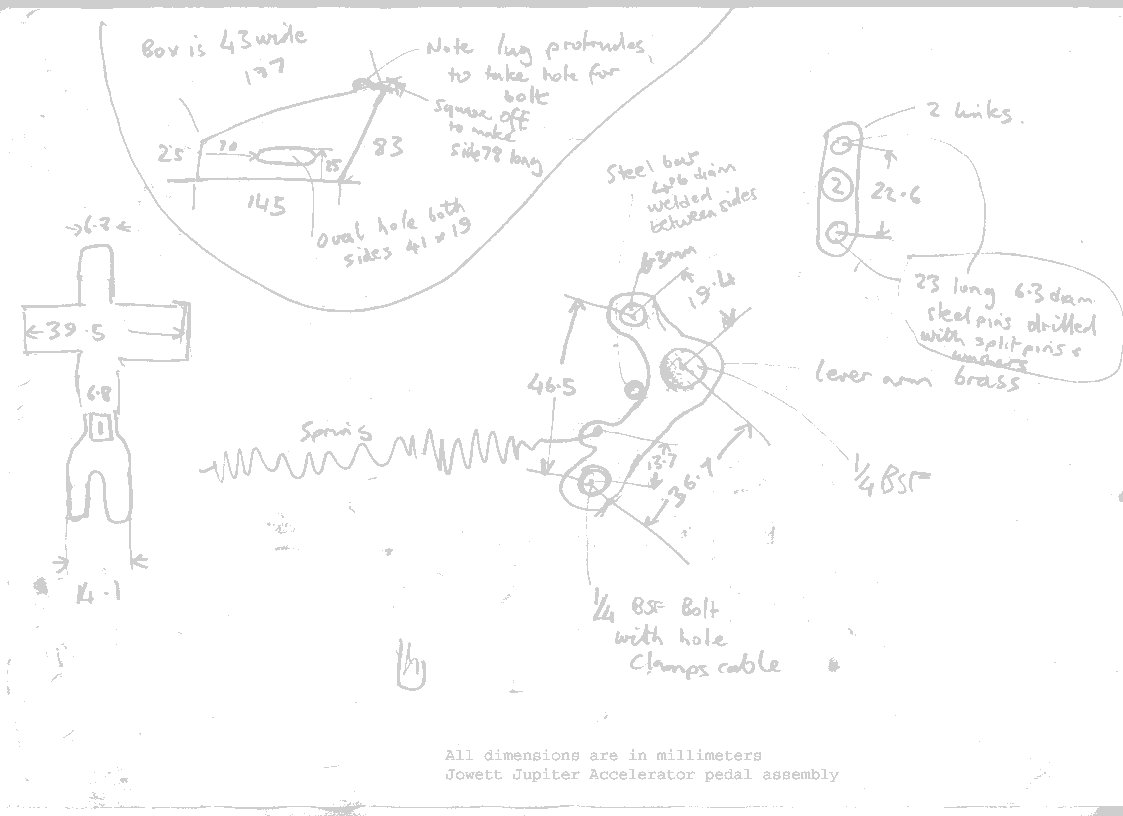

Attached are some very sketchy drawings I did this evening. Hope they are of some help. I did technical drawing at school, but you would never guess!
I will take some pictures and add these soon.
Note Bill Lock has pedal bits in his spares list on his web site.
